Photo voltaic Cell Technologies

There are several various technologies that can be used to produce gadgets that convert light into electricity, and we are going to discover these in turn. There is always an equilibrium to be struck between precisely how well something works, and also the much it costs to generate, and the same can be said intended for solar energy. Find the best uv window film singapore.

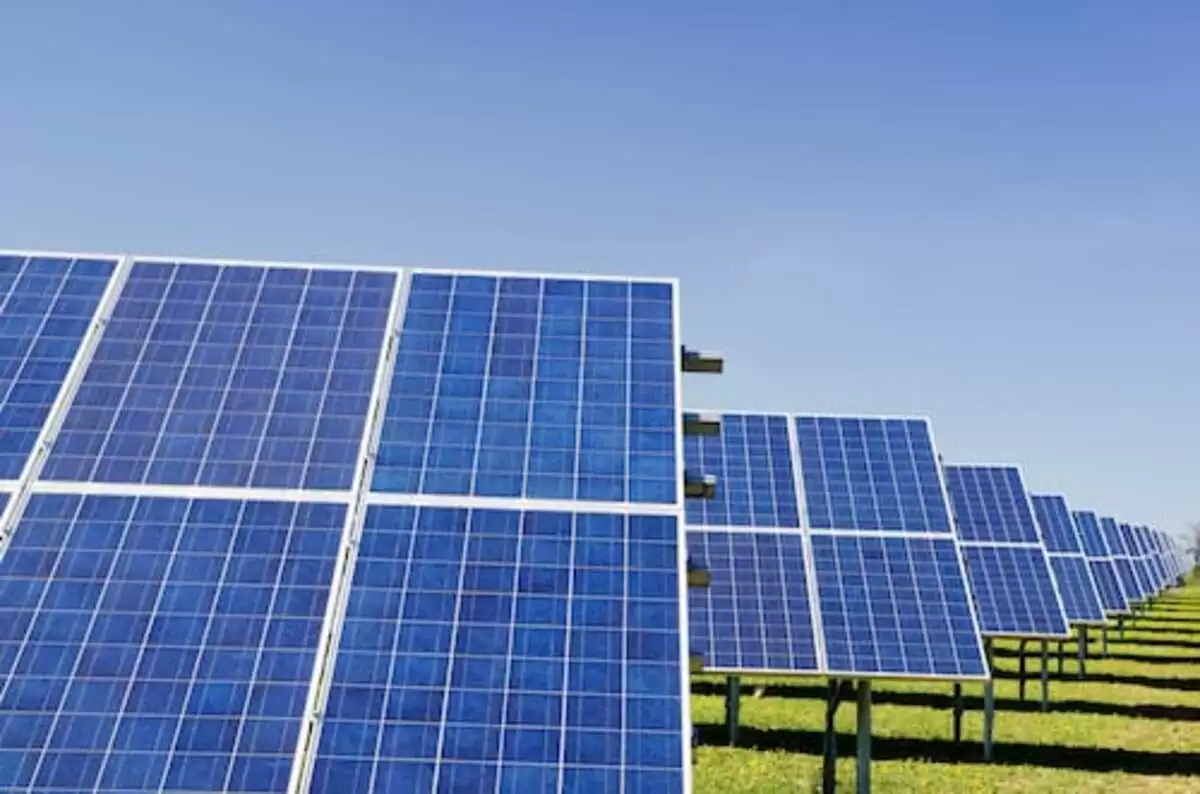

We take solar cells, and all of us combine them into much larger units known as “modules, very well these modules, ” all these modules can again get in touch together to form arrays. As a result, we can see that there is a chain of command, where the solar cell could be the smallest part.

Let us go into the structure and properties involving solar “cells, ” however, when combined into themes and arrays, the sun “cells” here are mechanically maintained by other materials-aluminum, glass, along with plastic.

One of the materials from which solar cells can be made is usually silicon-this is the material that you just find inside integrated promenades and transistors. There are great reasons for using silicon; it doesn’t the next most abundant factor on earth after oxygen. The fact that that sand is si dioxide (SiO2), you realize that there’s a lot of it out there!

Si can be used in several different ways to create photovoltaic cells. The most effective solar technology is that of “monocrystalline solar panels, ” which are slices associated with silicon taken from a single, big silicon crystal. As it is just one crystal it has a very normal structure and no boundaries among crystal grains and so this performs very well. You can usually identify a monocrystalline photo voltaic cell, as it appears to be circular or a square with curved corners.

One of the caveats with this particular type of method, as you will discover later, is that when a si crystal is “grown, inch it produces a round cross-section solar cell, which will not fit well with creating solar panels, as round tissues are hard to arrange effectively.

The next type of solar cellular we will be looking at also produced from silicon is slightly different, this is a “polycrystalline” solar cell. Polycrystalline cells are still made from strong silicon; however, the process utilized to produce the silicon that the cells are cut is slightly different. This results in “square” solar cells. However, there are many “crystals” in a polycrystalline cell, so they perform slightly less effectively, although they are cheaper to create with less wastage.

Right now, the problem with silicon solar panels, as we will see in the next test, is that they are all effectively “batch produced” which means they are manufactured in small quantities and are relatively expensive to manufacture. Additionally, as all of these cells tend to be formed from “slices” associated with silicon, they use quite a lot of materials, which means they are quite expensive.

Right now, there is another type of solar cell, alleged “thin-film” solar cells. The difference between these and crystalline tissues is that rather than using transparent silicon, these use chemical substances as semiconductors.

The chemical substances are deposited on top of some sort of “substrate, ” that is to say based on the solar cell. Many formulations do not call for silicon at all, such as Water piping indium diselenide (CIS) along with cadmium telluride. However, the gleam process is called “amorphous si, ” where silicon is usually deposited on a substrate, but not in a uniform crystal composition, but as a thin film. Additionally, rather than being slow to generate, thin-film solar cells can be generated using a continuous process, helping to make them much cheaper.

However, the drawback is that while they are more affordable, thin-film solar cells are less useful than their crystalline brethren.

When looking at the merits involving crystalline cells and thin-film cells, we can see that transparent cells produce the most electrical power for a given area. Nonetheless, the problem with them is that they are very pricey to produce and quite unbending (as you are limited to making panels from standard cell phone sizes and cannot transform or vary their shape).

The efficiency of different cell varieties:

Cell material EfficiencyArea forced to generate 1 KW optimum power

Monocrystalline silicon 15-18% 7-9 m2
polycrystalline si 13-16% 8-11 m2
Thin-film copper indium diselenide (CIS) 7. 5-9. 5% 11-13 m2
Cadmium telluride 6-9% 14-18 m2
Amorphous si 5-8% 16-20 m2

In electrical systems, thin-film cells are affordable to produce, and the only component limiting their shape may be the substrate they are mounted on. This means that you can create large tissues, and cells of different sizes and shapes, all of which can be useful in certain programs.

We are now going to have a detailed look at making 2 different types of solar cells, 1 will be a crystalline solar cell, and the other a thin-film solar cell. Both of the actual experiments are designed to be “illustrative, ” rather than to create shapes as the substrate they may be mounted on.

The technology necessary to make silicon solar cells no longer have enough reach of the home experimenter, so we are going to “illustrate” how a solar cell is created, using things you can find within your kitchen. For thin-film solar panels, we are going to make an actual photo voltaic cell, which response to light with changing electric properties; however, the effectiveness of our cell will be very bad, and it will not be able to generate a good amount of electricity.
